 KWD单轨小车
|
 产品详细说明： |
KWD II手推单轨小车
|
Model |
KWD005A |
KWD010A |
KWD020A |
KWD030A |
KWD050A |
KWD100A |
|
Rated capacity |
(mm) |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
Test load |
(kn) |
7.35 |
14.71 |
29.42 |
44.13 |
61.29 |
122.58 |
|
Min.radius of curve |
(m) |
0.9 |
1 |
1.1 |
1.3 |
1.4 |
1.7 |
|
Dimensions(mm) |
A |
195 |
207 |
240 |
252 |
294 |
375 |
|
B |
179 |
206 |
233 |
276 |
304 |
389 |
|
C |
120.5 |
145 |
176 |
207 |
237 |
306.5 |
|
E |
57 |
67 |
80 |
100 |
111 |
152 |
|
F |
30.5 |
40.5 |
52 |
57 |
66.5 |
86 |
|
I-beam recommended |
(mm) |
75-125 |
75-125 |
100-150 |
100-150 |
125-175 |
125-210 |
|
Net weight |
(kg) |
5.8 |
8 |
14.6 |
24.2 |
38.4 |
78 |
|
Gross Weight |
(kg) |
6.2 |
8.7 |
15.4 |
25.2 |
42.4 |
84 |
|
Packing measurement
(L×W×H) |
(cm) |
39.5×24×21/5pcs |
36×26×22/4pcs |
40×29×25/4pcs |
32×27×12pcs |
40×21×32pcs |
45×26×36 |

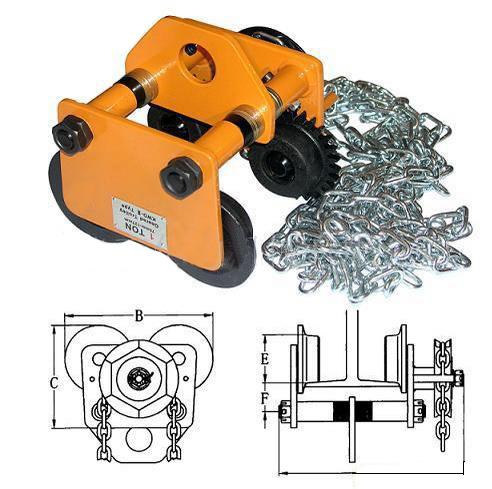

KWDIII手拉单轨小车
|
Model |
KWD005B |
KWD010B |
KWD020B |
KWD030B |
KWD050B |
KWD100B |
|
Rated capacity |
(mm) |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
Test load |
(kn) |
7.35 |
14.71 |
29.42 |
44.13 |
61.29 |
122.58 |
|
Min.radius of curve |
(m) |
0.9 |
1 |
1.1 |
1.3 |
1.4 |
1.7 |
|

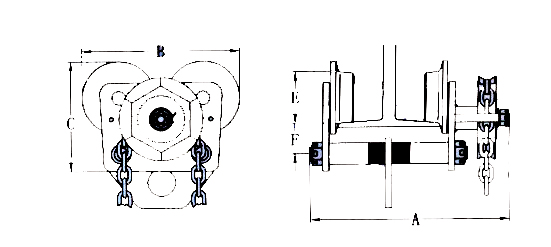

Dimensions(mm) |
A |
256 |
270 |
305 |
320 |
360 |
465 |
|
B |
179 |
206 |
233 |
276 |
304 |
389 |
|
C |
120.5 |
145 |
176 |
207 |
237 |
306.5 |
|
E |
57 |
67 |
80 |
100 |
111 |
152 |
|
F |
30.5 |
40.5 |
52 |
57 |
66.5 |
86 |
|
I-beam recommended |
(mm) |
75-125 |
75-125 |
100-150 |
100-150 |
125-175 |
125-210 |
|
Net weight |
(kg) |
10 |
12.2 |
18.8 |
28.9 |
43.4 |
83 |
|
Gross Weight |
(kg) |
10.6 |
12.9 |
19.6 |
30.0 |
47.4 |
89 |
|
Packing measurement
(L×W×H) |
(cm) |
27×20×14 |
29×22×16.5 |
32×25×19.5 |
34×30×23 |
40×31×31 |
45×37×31 | |
|
|
